🐾 Monagotchi

A physical Tamagotchi on an ESP32 that's powered by a memecoin on nad.fun (Monad) and controls your real-world environment through Alexa. Managed via OpenClaw.

Every pet action burns $MONA tokens. Your pet's health controls your room.

Feed it, play with it, heal it — each interaction burns $MONA on-chain. But neglect it and your room lights go red, the temperature climbs, and Alexa warns you. Take care of it and everything goes back to calm.

ca: https://nad.fun/tokens/0x2CB31c268819EE133De378A3A2E087F0b0eC7777

How It Works

"Feed my pet"
    → OpenClaw checks pet status on ESP32
    → Burns 1,000 $MONA on Monad (sent to 0x...dEaD)
    → Tx confirms → calls ESP32 /feed endpoint
    → Pet reacts on LCD screen
    → Alexa sets room lights to green, thermostat to 72°F
    → Owner gets Telegram confirmation

Pet gets sick (neglected too long)
    → Alexa sets lights to red, thermostat to 80°F
    → "Warning. Monagotchi is sick. It needs healing."

Pet dies
    → Room goes full red, 85°F
    → Stays that way until you reset

AUSD sent to treasury
    → ausd-watcher detects Transfer event
    → Logs wallet, amount, tx hash to ausd_log.json
    → Pet state updated with AUSD_FEED event

What's In This Repo

ESP32 Firmware (monagotchi.ino)

Runs on an ESP32 + Waveshare 1.69" (240×280) TFT display + 5 physical buttons.

  • Pet simulation — hunger, happiness, health, energy, cleanliness stats that decay over time
  • Animated pet on LCD with state-based expressions (happy, sleeping, sick, hungry, dead)
  • 5 hardware buttons — feed, play, clean, sleep/wake, heal
  • Web server on port 80 — HTTP API for remote control
  • Browser UI — web dashboard with stat bars and action buttons
  • OpenClaw integration — pushes status alerts to your AI agent

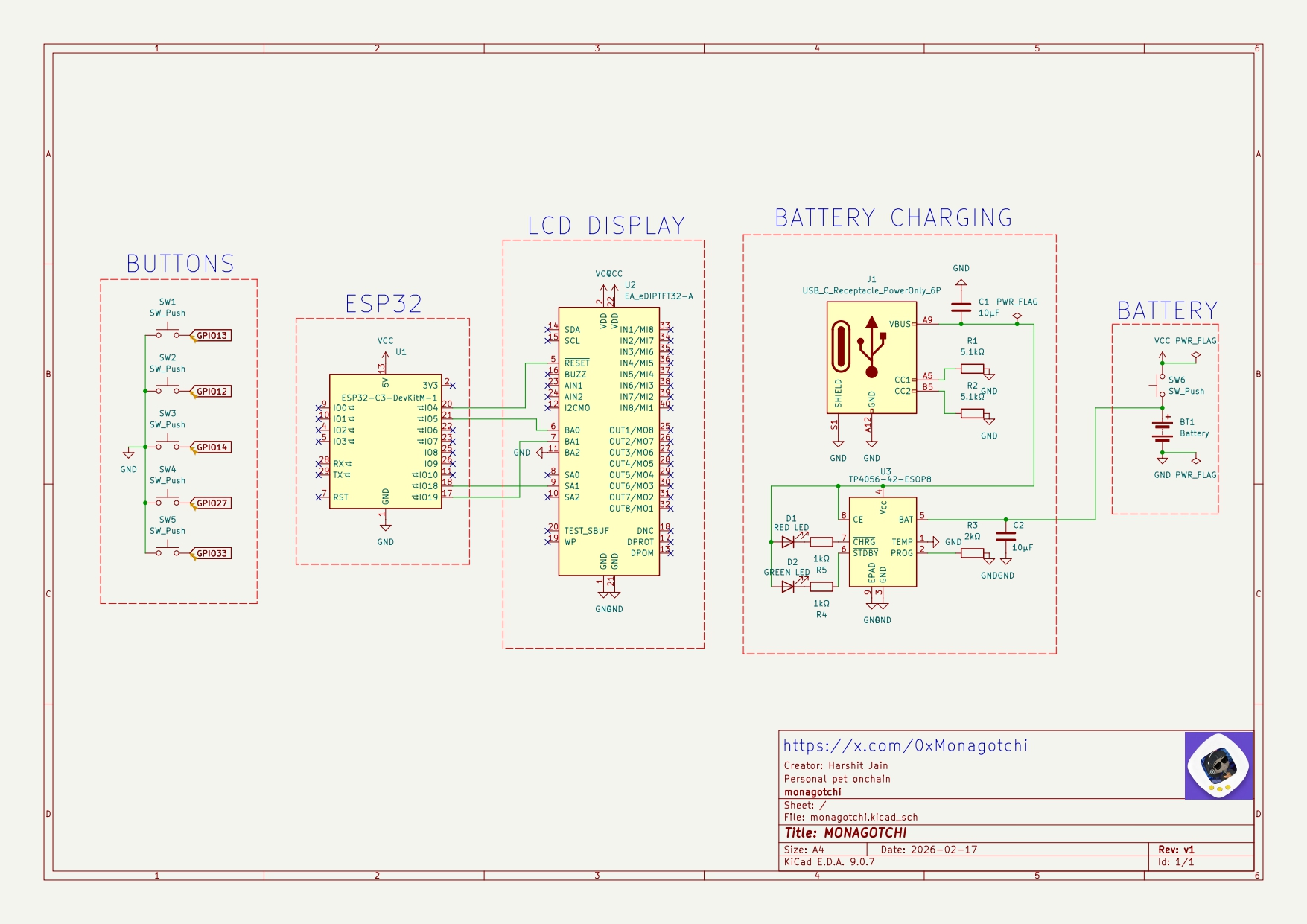

Hardware

Monagotchi

Component Detail
Display Waveshare 1.69" TFT (240×280), SPI via TFT_eSPI
Button 1 — Feed GPIO 32
Button 2 — Play GPIO 33
Button 3 — Clean GPIO 25
Button 4 — Sleep GPIO 26
Button 5 — Heal GPIO 27

OpenClaw Skills

monagotchi-controller/ — ESP32 HTTP API. Checks pet status, decides which action to take, enforces the rule: burn tokens first, then execute.

monagotchi-trader/ — On-chain operations. Checks $MONA balance, burns tokens for pet actions via ERC-20 transfer to dead address. Uses ethers.js.

monagotchi-environment/ — Alexa smart home bridge. Maps pet state to room lights, temperature, and voice announcements via alexacli. Runs on every action and on a 5-minute cron.

monagotchi-ausd/ — AUSD (Agora USD) integration. Watches for AUSD transfers to the Monagotchi treasury on Monad. Logs each sender's wallet, amount, and tx hash for Moltiverse/Agora tracking.

Token Economy

Action $MONA Burned Pet Effect
Feed 1,000 +20 hunger
Play 2,500 +15 happiness, -15 energy
Clean 1,500 Cleanliness → 100, +5 health
Heal 5,000 Health → 100
Sleep/Wake free Toggle rest (energy recovers)
Status free Check stats
Send AUSD any amount AUSD_FEED event logged

Environment Mapping

Pet State Lights Thermostat Alexa Announcement
🟢 Happy / Normal Green 72°F "Monagotchi is happy and healthy."
🟡 Hungry Yellow 76°F "Monagotchi is getting hungry."
🟠 Sleeping Dim blue 70°F — (quiet)
🔴 Sick Red 80°F "Warning. Monagotchi is sick."
💀 Dead Full red 85°F "Monagotchi has died." (stays until reset)

Setup

1. Flash the ESP32

  1. Open monagotchi.ino in Arduino IDE
  2. Install ESP32 board support and TFT_eSPI
  3. Configure TFT_eSPI for your Waveshare 1.69" display
  4. Update WiFi credentials and OpenClaw webhook URL in the sketch
  5. Flash and boot — the LCD shows the IP address

2. Launch $MONA on nad.fun

  1. Go to nad.fun, connect your Monad wallet
  2. Create token → Name: Monagotchi, Symbol: MONA
  3. Description: "Every interaction burns $MONA. Care for the pet, burn the supply. Neglect it and your room pays the price."
  4. Do an initial buy so you have tokens to spend
  5. Copy the token contract address

3. Install OpenClaw Skills

# Clone the repo
cd ~/.openclaw/skills
git clone https://github.com/YOUR_USERNAME/monagotchi.git

# Symlink skills so OpenClaw finds them
ln -s monagotchi/monagotchi-controller monagotchi-controller
ln -s monagotchi/monagotchi-trader monagotchi-trader
ln -s monagotchi/monagotchi-environment monagotchi-environment
ln -s monagotchi/monagotchi-ausd monagotchi-ausd

# Install alexa-cli dependency
clawhub install buddyh/alexa-cli

# Install dependencies for each skill
cd monagotchi/monagotchi-trader/scripts && npm install
cd monagotchi/monagotchi-ausd/scripts && npm install

4. Configure OpenClaw Gateway Webhook

The ESP32 pushes status updates and alerts to your OpenClaw agent via the gateway's webhook endpoint (POST /hooks/agent). This is how the pet notifies your agent when it gets sick, hungry, or dies — so the agent can react (update Alexa, alert you on Telegram, etc).

Add the hooks block to your ~/.openclaw/openclaw.json:

{
  "hooks": {
    "enabled": true,
    "token": "tamapetchi-esp32-hook-secret",
    "path": "/hooks",
    "defaultSessionKey": "hook:monagotchi",
    "allowRequestSessionKey": false,
    "allowedSessionKeyPrefixes": ["hook:"]
  }
}

Then update the ESP32 sketch (monagotchi.ino) to point at your PC's local IP and match the token:

// Replace 192.168.1.XXX with YOUR PC's local IP (run ipconfig/ifconfig)
const char* openclawURL = "http://192.168.1.XXX:18789/hooks/agent";
const char* hookToken = "monagotchi-esp32-hook-secret";

The ESP32 sends these webhook events automatically:

Event When Example Message
Boot ESP32 powers on "Monagotchi has booted up and is ready! Initial stats - Hunger:50 Happy:50 Health:80 Energy:100 Clean:80"
Status push Every 60 seconds "Monagotchi status update - Hunger:45 Happy:47 Health:80 Energy:98 Clean:76 Age:3min State:normal Alive:yes"
Sick alert Health drops below 30 "ALERT: Monagotchi is sick! Health:25 Hunger:10 Clean:15. Needs healing!"
Hungry alert Hunger drops below 20 "ALERT: Monagotchi is hungry! Hunger:15. Please feed!"
Sleep alert Energy drops below 20 "Monagotchi fell asleep. Energy was low at 18."
Death alert Health reaches 0 "ALERT: Monagotchi has died! Age was 47 minutes. Press reset to start over."
Reset Pet is reset via button or web "Monagotchi has been reset! New pet starting fresh."

Each webhook is a POST to /hooks/agent with this payload:

{
  "message": "ALERT: Monagotchi is sick! Health:25 Hunger:10 Clean:15. Needs healing!",
  "name": "Monagotchi",
  "deliver": true,
  "channel": "telegram"
}

The deliver: true and channel: "telegram" fields tell OpenClaw to forward the agent's response to your Telegram. The agent will use the monagotchi skills to decide what to do (check status, burn tokens, heal the pet, update the room environment, etc).

Security note: Use a strong random token in production (openssl rand -base64 32). The example token above is just a placeholder. Make sure the token in the .ino file matches the one in openclaw.json.

5. Configure OpenClaw Skills

Add to ~/.openclaw/openclaw.json:

{
  "skills": {
    "entries": {
      "monagotchi-controller": {
        "enabled": true,
        "env": {
          "MONAGOTCHI_ESP32_IP": "192.168.1.XXX"
        }
      },
      "monagotchi-trader": {
        "enabled": true,
        "env": {
          "MONAGOTCHI_TOKEN_ADDRESS": "0xYOUR_TOKEN_ADDRESS",
          "MONAD_PRIVATE_KEY": "0xYOUR_PRIVATE_KEY",
          "MONAD_RPC_URL": "https://monad-mainnet.g.alchemy.com/v2/YOUR_KEY"
        }
      },
      "monagotchi-environment": {
        "enabled": true,
        "env": {
          "MONAGOTCHI_ALEXA_DEVICE": "Bedroom"
        }
      },
      "monagotchi-ausd": {
        "enabled": true,
        "env": {
          "TREASURY_ADDRESS": "0xYOUR_TREASURY_WALLET",
          "MONAD_RPC_URL": "https://monad-mainnet.g.alchemy.com/v2/YOUR_KEY"
        }
      },
      "alexa-cli": {
        "enabled": true
      }
    }
  }
}

Add the environment sync cron job:

{
  "cron": {
    "jobs": [
      {
        "name": "monagotchi-environment-sync",
        "schedule": "*/5 * * * *",
        "command": "Check Monagotchi pet status and update room environment accordingly."
      }
    ]
  }
}

6. Start the AUSD Watcher

cd monagotchi-ausd/scripts
node ausd-watcher.mjs

The watcher listens for AUSD transfers to your treasury and appends each one to ausd_log.json:

[
  {
    "wallet": "0xabc...",
    "amount": "10000000",
    "amountFormatted": "10.00",
    "txHash": "0xdef...",
    "timestamp": "2025-01-01T00:00:00.000Z"
  }
]

7. Test

Tell your OpenClaw agent: "Feed my pet"

It should:

  1. Check pet status on the ESP32
  2. Check your $MONA balance
  3. Burn 1,000 $MONA (you'll see the tx hash)
  4. Call the ESP32 /feed endpoint
  5. Set your room lights to green via Alexa
  6. Confirm via Telegram

Then wait. Don't feed it for a while. Watch your room slowly turn yellow, then red.

Repo Structure

monagotchi/
├── monagotchi.ino                            # ESP32 firmware
├── monagotchi-controller/
│   └── SKILL.md                              # OpenClaw skill: ESP32 pet API
├── monagotchi-trader/
│   ├── SKILL.md                              # OpenClaw skill: $MONA token burns
│   ├── scripts/
│   │   ├── monagotchi-trader.mjs             # Burn + balance script
│   │   └── package.json
│   └── references/
│       └── nadfun-contracts.md               # Monad contract addresses
├── monagotchi-environment/
│   └── SKILL.md                              # OpenClaw skill: Alexa environment
└── monagotchi-ausd/
    ├── SKILL.md                              # OpenClaw skill: AUSD treasury watcher
    └── scripts/
        ├── ausd-watcher.mjs                  # Watches AUSD transfers, logs to ausd_log.json
        └── package.json

Requirements

  • ESP32 + Waveshare 1.69" TFT + 5 buttons
  • OpenClaw running locally
  • alexa-cli installed and authenticated
  • Alexa-compatible smart lights + thermostat
  • Monad wallet with $MONA + MON for gas
  • Node.js 18+

License

MIT

About

OpenClaw skills that connect a physical ESP32 Tamagotchi (LCD + buttons) to a memecoin on nad.fun (Monad). Buy $MONA → pet gets fed. Sell → pet gets sad. Includes ESP32 firmware, blockchain event watcher, and AI agent skills that bridge on-chain trades to real-time pet reactions.
